TGL2201-SM Wideband Dual-Stage VPIN Limiter

TGL2201-SM Description

TGL2201-SM Wideband Dual Stage VPIN Limiter Applications * * LNA Receiver Chain Protection Military Radar Product .
The TriQuint TGL2201-SM is a packaged dual stage GaAs VPIN Limiter that operates over the 2 to 12 GHz band.

TGL2201-SM Features

* 2-12 GHz Passive, High Isolation Limiter Low Loss < 1.0 dB , X-band Return Loss > 10 dB Flat Leakage < 18 dBm Input Power CW Survivability up to 5W Integrated DC Block on both input and output Package dimensions 3.0 x 3.0 x 1.35 m

📥 Download Datasheet

Preview of TGL2201-SM PDF

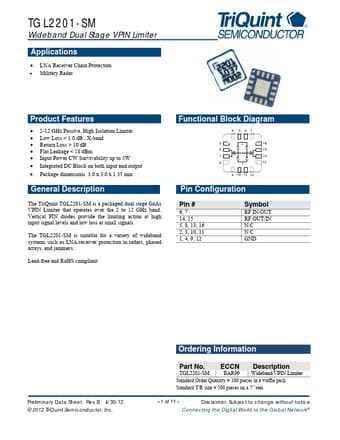

datasheet Preview Page 2 datasheet Preview Page 3
