TGF2080 - 800um Discrete GaAs pHEMT

TriQuint Semiconductor

📥 Download Datasheet

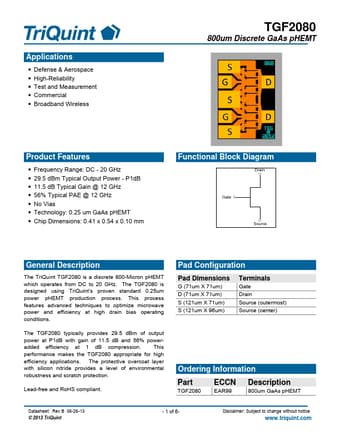

TGF2080 Datasheet Preview — Preview of TGF2080 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TGF2080
Manufacturer	TriQuint Semiconductor
File Size	188.13 KB
Description	800um Discrete GaAs pHEMT
Datasheet	TGF2080-TriQuintSemiconductor.pdf

TGF2080 Product details

Description

The TriQuint TGF2080 is a discrete 800-Micron pHEMT which operates from DC to 20 GHz.

Features

Frequency Range: DC - 20 GHz.
29.5 dBm Typical Output Power - P1dB.
11.5 dB Typical Gain @ 12 GHz.
56% Typical PAE @ 12 GHz.
No Vias.
Technology: 0.25 um GaAs pHEMT.
Chip Dimensions: 0.41 x 0.54 x 0.10 mm Functional Block Diagram General.
