TGF2060 600 um Discrete GaAs pHEMT

TriQuint Semiconductor

Description

Applications * Defense & Aerospace * High-Reliability * Test and Measurement * Commercial * Broadband Wireless.
The TriQuint TGF2060 is a discrete 600 micron pHEMT which operates from DC to 20 GHz.

📥 Download Datasheet

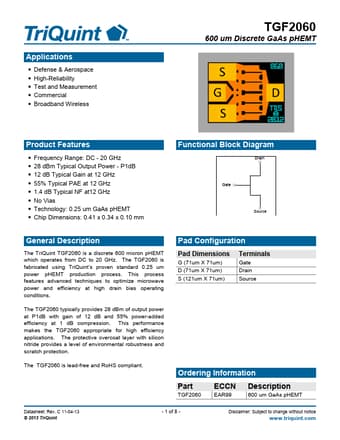

TGF2060 Datasheet Preview — Preview of TGF2060 PDF

Datasheet Specifications

Part number: TGF2060
Manufacturer: TriQuint Semiconductor
File Size: 383.29 KB
Datasheet: TGF2060-TriQuintSemiconductor.pdf
Description: 600 um Discrete GaAs pHEMT

Features

* Frequency Range: DC - 20 GHz
* 28 dBm Typical Output Power - P1dB
* 12 dB Typical Gain at 12 GHz
* 55% Typical PAE at 12 GHz
* 1.4 dB Typical NF at12 GHz
* No Vias
* Technology: 0.25 um GaAs pHEMT
* Chip Dimensions: 0.41 x 0.34 x 0.10

Applications

* Defense & Aerospace
* High-Reliability
* Test and Measurement
* Commercial
