TGF2040 400 um Discrete GaAs pHEMT

TriQuint Semiconductor

Description

Applications * Defense & Aerospace * High-Reliability * Test and Measurement * Commercial * Broadband Wireless.
The TriQuint TGF2040 is a discrete 400 micron pHEMT which operates from DC to 20 GHz.

📥 Download Datasheet

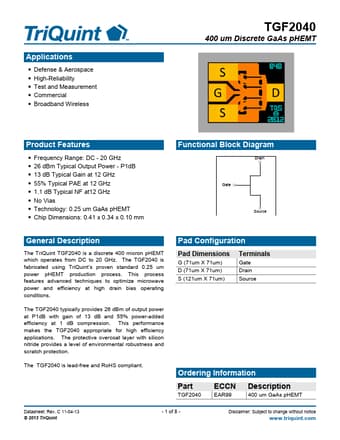

TGF2040 Datasheet Preview — Preview of TGF2040 PDF

Datasheet Specifications

Part number: TGF2040
Manufacturer: TriQuint Semiconductor
File Size: 384.28 KB
Datasheet: TGF2040-TriQuintSemiconductor.pdf
Description: 400 um Discrete GaAs pHEMT

Features

* Frequency Range: DC - 20 GHz
* 26 dBm Typical Output Power - P1dB
* 13 dB Typical Gain at 12 GHz
* 55% Typical PAE at 12 GHz
* 1.1 dB Typical NF at12 GHz
* No Vias
* Technology: 0.25 um GaAs pHEMT
* Chip Dimensions: 0.41 x 0.34 x 0.10

Applications

* Defense & Aerospace
* High-Reliability
* Test and Measurement
* Commercial
