TC1101 - Low Noise and Medium Power GaAs FETs

Description

The TC1101 is a GaAs Pseudomorphic High Electron Mobility Transistor (PHEMT) chip, which has very low noise figure, high associated gain and high dynamic range.

Features

  • Low Noise Figure: NF = 0.5 dB Typical at 12 GHz High Associated Gain: Ga = 12 dB Typical at 12 GHz High Dynamic Range: 1 dB Compression Power P-1 = 18 dBm at 12 GHz Breakdown Voltage: BVDGO ≥ 9 V Lg = 0.25 µm, Wg = 160 µm All-Gold Metallization for High Reliability 100 % DC Tested PHOTO.

📥 Download Datasheet

Datasheet preview – TC1101

Datasheet Details

Part number TC1101
Manufacturer Transcom
File Size 157.24 KB
Description Low Noise and Medium Power GaAs FETs
Datasheet download datasheet TC1101 Datasheet
Additional preview pages of the TC1101 datasheet.

📁 Similar Datasheet

  • TC110 - PFM/PWM Step-Up DC/DC Controller (Microchip)
  • TC1100H - SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE (Lite-On Technology)
  • TC1100H - SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE (Lite-On)
  • TC1102 - SMD TELECOIL 10.5X1.4X2MM (Premo)
  • TC1107 - 300mA CMOS LDO (Microchip)
  • TC1108 - 300mA CMOS LDO (Microchip)
  • TC110G03 - CMOS Gate Array (Toshiba)
  • TC110G05 - CMOS Gate Array (Toshiba)
  • TC110G08 - CMOS Gate Array (Toshiba)
  • TC110G11 - CMOS Gate Array (Toshiba)
Other Datasheets by Transcom
  • TC1102 - Super Low Noise GaAs FETs
  • TC1301 - Low Noise and Medium Power GaAs FETs
  • TC1601 - 2W High Linearity and High Efficiency GaAs Power FETs

Full PDF Text Transcription

Click to expand full text

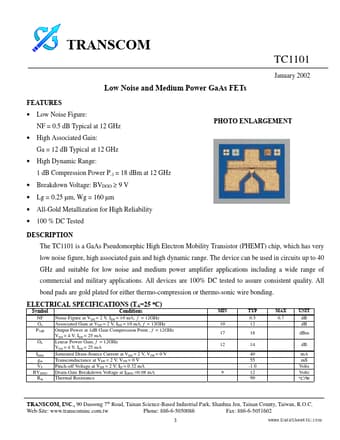

TRANSCOM TC1101 January 2002 Low Noise and Medium Power GaAs FETs FEATURES • • • • • • • Low Noise Figure: NF = 0.5 dB Typical at 12 GHz High Associated Gain: Ga = 12 dB Typical at 12 GHz High Dynamic Range: 1 dB Compression Power P-1 = 18 dBm at 12 GHz Breakdown Voltage: BVDGO ≥ 9 V Lg = 0.25 µm, Wg = 160 µm All-Gold Metallization for High Reliability 100 % DC Tested PHOTO ENLARGEMENT DESCRIPTION The TC1101 is a GaAs Pseudomorphic High Electron Mobility Transistor (PHEMT) chip, which has very low noise figure, high associated gain and high dynamic range. The device can be used in circuits up to 40 GHz and suitable for low noise and medium power amplifier applications including a wide range of commercial and military applications.
