TC74VHC4020F - 14-Stage Ripple Carry Binary Counter

Product Overview

Toshiba

Part number	TC74VHC4020F
Manufacturer	Toshiba
File Size	359.05 KB
Description	14-Stage Ripple Carry Binary Counter
Datasheet	TC74VHC4020F Datasheet

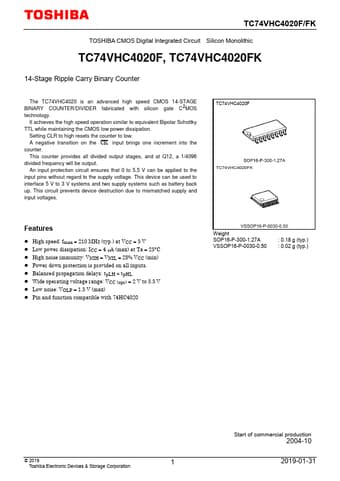

Additional preview pages of the TC74VHC4020F datasheet.

High speed: fmax  210 MHz (typ. ) at VCC  5 V.
Low power dissipation: ICC  4 A (max) at Ta  25°C.
High noise immunity: VNIH  VNIL  28% VCC (min).
Power down protection is provided on all inputs.
Balanced propagation delays: tpLH tpHL.
Wide operating voltage range: VCC (opr)  2 V to 5.5 V.
Low noise: VOLP  1.5 V (max).
Pin and function compatible with 74HC4020 Weight SOP16-P-300-1.27A VSSOP16-P-0030-0.50 : 0.18 g (typ. ) : 0.02 g (typ. ) © 20.
