TC74VHC373FT - OCTAL D-TYPE LATCH WITH 3-STATE OUTPUT

Product Overview

Toshiba

Part number	TC74VHC373FT
Manufacturer	Toshiba
File Size	295.67 KB
Description	OCTAL D-TYPE LATCH WITH 3-STATE OUTPUT
Datasheet	TC74VHC373FT Datasheet

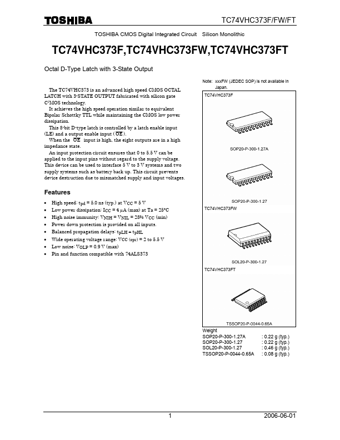

Additional preview pages of the TC74VHC373FT datasheet.

High speed: tpd = 5.0 ns (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 4 µA (max) at Ta = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (min).
Power down protection is provided on all inputs.
Balanced propagation delays: tpLH ∼.
tpHL.
Wide operating voltage range: VCC (opr) = 2 to 5.5 V.
Low noise: VOLP = 0.9 V (max).
Pin and function compatible with 74ALS373 Note: xxxFW (JEDEC SOP) is not available in Japa.
