TB62725 Datasheet - Toshiba

TB62725 8BIT CONSTANT CURRENT LED DRIVER OF OPERATING VOLTAGE 3.3V

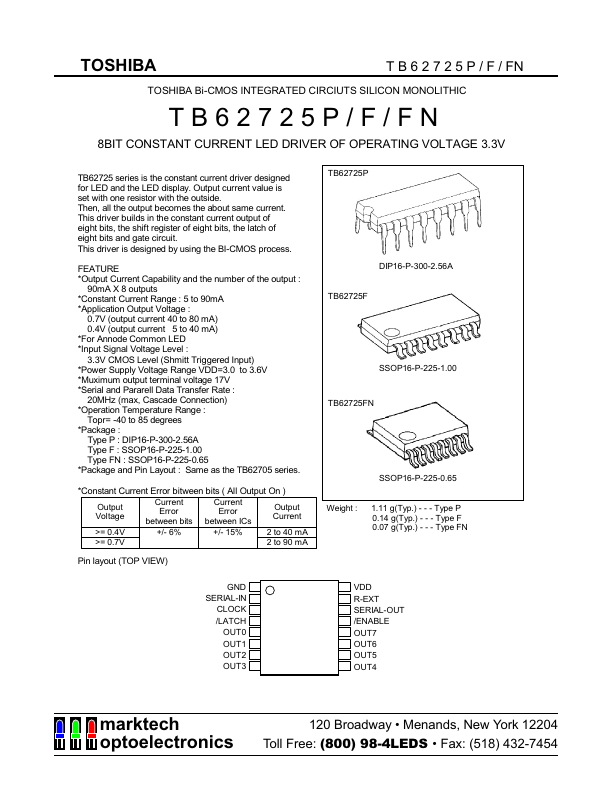

TOSHIBA T B 6 2 7 2 5 P / F / FN TOSHIBA Bi-CMOS INTEGRATED CIRCIUTS SILICON MONOLITHIC TB62725P/F/FN 8BIT CONSTANT CURRENT LED DRIVER OF OPERATING VOLTAGE 3.3V TB62725 series is the constant current driver designed for LED and the LED display. Output current value is set with one resistor with the outside. Then, all the output becomes the about same current. This driver builds in the constant current output of eight bits, the shift register of eight bits, the latch of eight bits and gate cir.

TB62725 Features

* B62705 & 725 DUTY(%)-IOUT(mA) On PCB Topr=55degC VDD=5.0V, Vce=1.0(V), Tj=120(degC max) 100 90 8

TB62725 Datasheet (313.09 KB)

Preview of TB62725 PDF

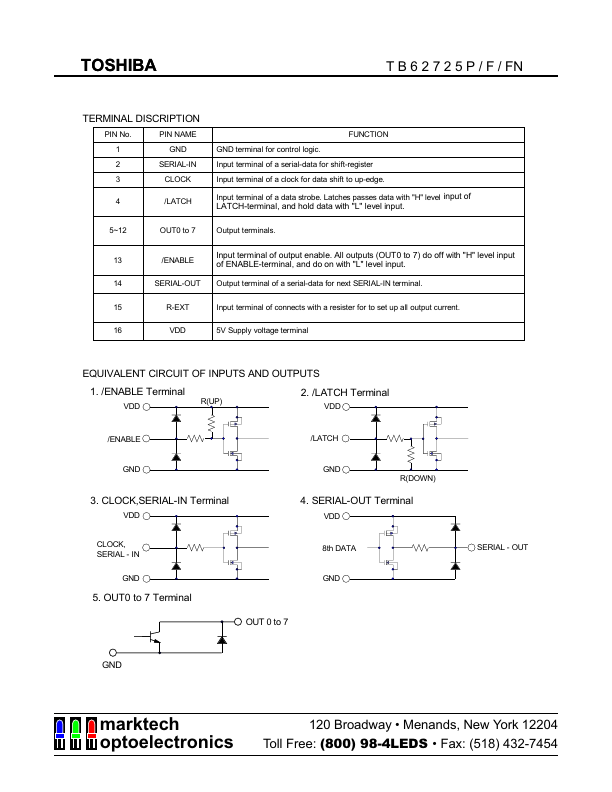

TB62725 Datasheet Preview Page 2 TB62725 Datasheet Preview Page 3

Datasheet Details

Part number:

TB62725

Manufacturer:

Toshiba ↗

File Size:

313.09 KB

Description:

8bit constant current led driver of operating voltage 3.3v.
