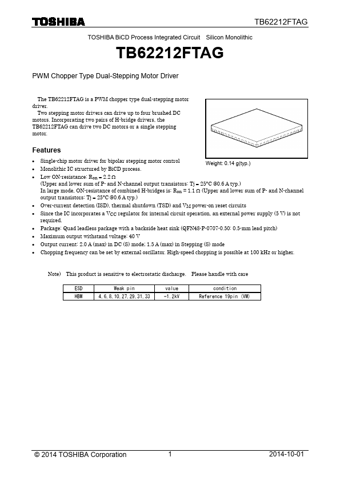

TB62212FTAG - Dual-Stepping Motor Driver

Toshiba

Datasheet Details

Single-chip motor driver for bipolar stepping motor control.
Monolithic IC structured by BiCD process. Weight: 0.14 g(typ. ).
Low ON-resistance: Ron = 2.2 Ω (Upper and lower sum of P- and N-channel output transistors: Tj = 25°C @0.6 A typ. ) In large mode, ON-resistance of combined H-bridges is: Ron = 1.1 Ω (Upper and lower sum of P- and N-channel output transistors: Tj = 25°C @0.6 A typ. ).
Over-current detection (ISD), thermal shutdown (TSD) and VM power-o.
