TA7630P DUAL VOLUME/BALANCE/TONE (BASS/BREBLE) DC CONTROL IC

TA7630P Description

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA7630P Dual.Volume/Balance/Tone (Bass/Treble) DC Control IC The TA7630P is DC controll.

TA7630P Features

* Wide power supply voltage range: Single supply VCC (opr) = 8~14 V (Ta = 25°C) Dual supply VCC
* VEE (opr) = ±4~±7 V (Ta = 25°C)
* Wide volume control range: VR = 80dB (typ. )
* Excellent cross talk: C. T. = 70dB (typ. )
* Stable for temperature drift.
* Wide tone control r

📥 Download Datasheet

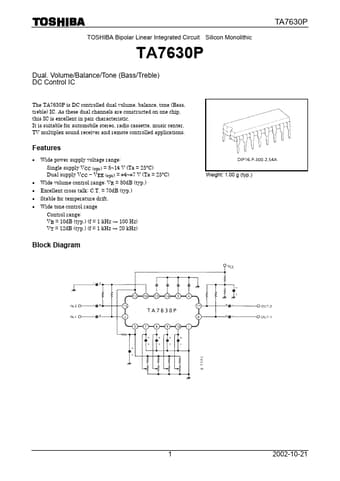

Preview of TA7630P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA7630P
Manufacturer
Toshiba ↗
File Size
278.21 KB
Datasheet
TA7630P_Toshiba.pdf
Description
DUAL VOLUME/BALANCE/TONE (BASS/BREBLE) DC CONTROL IC
