TA7611AP FM IF/AM TUNER SYSTEM

TA7611AP Description

TA7611AP .
LINEAR INTEGRATED CIRCUIT FM IF/AM TUNER SYSTEM The Contek TA7611AP is a monolithic integrated circuit, designed for the VIF stage in color and B/W.

TA7611AP Features

* High gain wide brand IF amplifier
* Gain reduction with excellent stability
* Excellent DG/DP and S/N characteristics
* Negative video output signal
* Fast AGC action due to noise inverter and peak AGC
* Switch off the video part VTR SW FUNCTIONS DIP-16
* Three controlled

📥 Download Datasheet

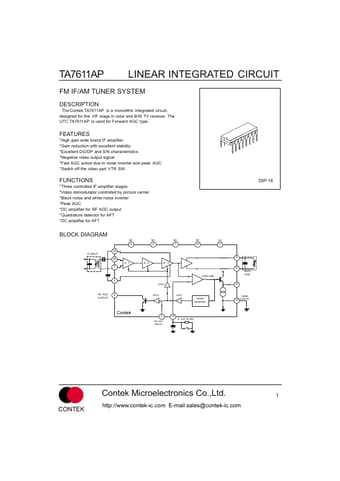

Preview of TA7611AP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA7611AP
Manufacturer
ETC
File Size
60.44 KB
Datasheet
TA7611AP_ETC.pdf
Description
FM IF/AM TUNER SYSTEM
