TA2056FN - 1.5V CORDLESS HEADPHONE RECEIVER

TA2056FN Description

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA2056FN 1.5V Cordless Headphone Receiver TA2056FN The TA2056FN is an infrared ray line.

TA2056FN Features

* Two built
* in FM receivers for stereo (f = 2.3 / 2.8MHz)
* Excellent spurious radiation by direct detection type
* Built
* in muting function (retuned noise detection type)
* Built
* in buffer amplifier for muting signal detection
* Built
* in muting a

📥 Download Datasheet

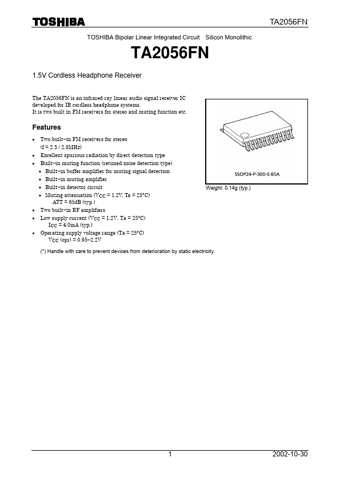

Preview of TA2056FN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA2056FN
Manufacturer
Toshiba ↗
File Size
280.88 KB
Datasheet
TA2056FN_Toshiba.pdf
Description
1.5V CORDLESS HEADPHONE RECEIVER
