TA2050S, TA2050 GROUND ISOLATOR IC

TA2050S Description

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA2050S,TA2050F TA2050S/F Ground Isolator IC TA2050S/F are ground isolator IC designed.

TA2050S Features

* Dual channel differential amplifier
* Built-in feedback Resistor
* High common mode rejection ratio : CMRR = 60dB (typ. ) (VCC = 8 V, f = 1 kHz, VCM = 1 Vrms)
* Low noise : VNO = 1.7 µVrms (typ. ) (VCC = 8 V, Rg = 620 Ω, Filter = 20 Hz~20 kHz)
* Low distortion : THD = 0.002% (typ

TA2050S Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TA2050S, TA2050. Please refer to the document for exact specifications by model.

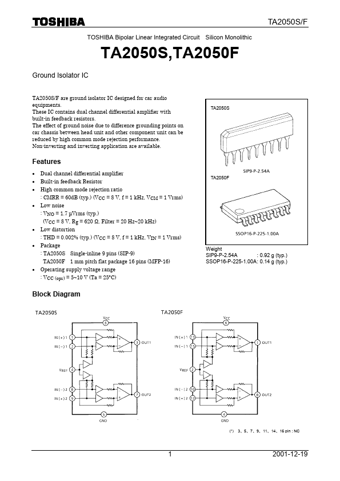

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA2050S, TA2050
Manufacturer
Toshiba ↗
File Size
343.06 KB
Datasheet
TA2050_Toshiba.pdf
Description
GROUND ISOLATOR IC
Note
This datasheet PDF includes multiple part numbers: TA2050S, TA2050.
Please refer to the document for exact specifications by model.
