MG25Q2YS40 - Silicon N Channel IGBT GTR Module

Toshiba

The MG25Q2YS40 by Toshiba is a Silicon N Channel IGBT GTR Module. Below is the official datasheet preview.

📥 Download Datasheet

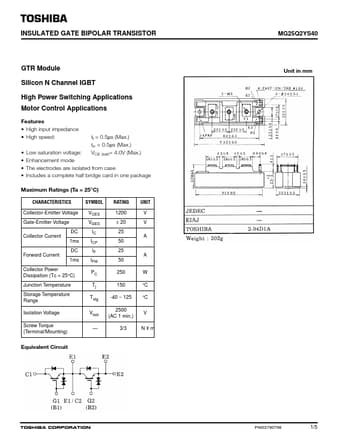

MG25Q2YS40 Silicon N Channel IGBT GTR Module by Toshiba - Datasheet Preview — Official preview page of the MG25Q2YS40 Silicon N Channel IGBT GTR Module datasheet (Toshiba).

Datasheet Details

Part number	MG25Q2YS40
Manufacturer	Toshiba
File Size	597.15 KB
Description	Silicon N Channel IGBT GTR Module
Datasheet	MG25Q2YS40_ToshibaSemiconductor.pdf
Additional preview pages of the MG25Q2YS40 datasheet.

MG25Q2YS40 Product details

Features

High input impedance.
High speed:.
Low saturation voltage:.
Enhancement mode tf = 0.5µs (Max. ) trr = 0.5µs (Max. ) VCE (sat)= 4.0V (Max. ).
The electrodes are isolated from case.
Includes a complete half bridge card in one package Maximum Ratings (Ta = 25°C).
