Description

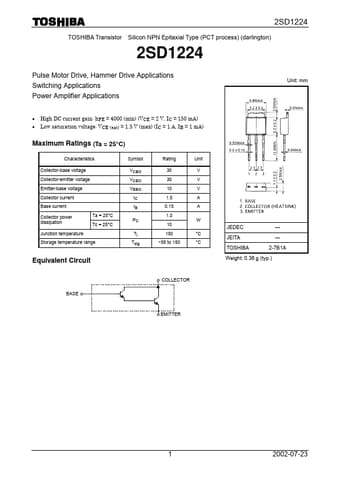

2SD1224 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) (darlington) 2SD1224 Pulse Motor Drive, Hammer Drive Applications Switching Appli.

📥 Download Datasheet

Preview of D1224 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* Switching Applications Power Amplifier Applications Unit: mm
* High DC current gain: hFE = 4000 (min) (VCE = 2 V, IC = 150 mA)
* Low saturation voltage: VCE (sat) = 1.5 V (max) (IC = 1 A, IB = 1 mA) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter vo
