D1221UK - METAL GATE RF SILICON FET

📥 Download Datasheet

Datasheet preview – D1221UK

Datasheet Details

Part number D1221UK
Manufacturer Seme LAB
File Size 114.93 KB
Description METAL GATE RF SILICON FET
Datasheet download datasheet D1221UK Datasheet
Additional preview pages of the D1221UK datasheet.

📁 Similar Datasheet

Other Datasheets by Seme LAB
  • D1222UK - METAL GATE RF SILICON FET
  • D1201UK - METAL GATE RF SILICON FET
  • D1202 - METAL GATE RF SILICON FET
  • D1202UK - METAL GATE RF SILICON FET
  • D1203UK - METAL GATE RF SILICON FET
  • D1204 - METAL GATE RF SILICON FET
  • D1204UK - METAL GATE RF SILICON FET
  • D1207 - METAL GATE RF SILICON FET

Full PDF Text Transcription

Click to expand full text

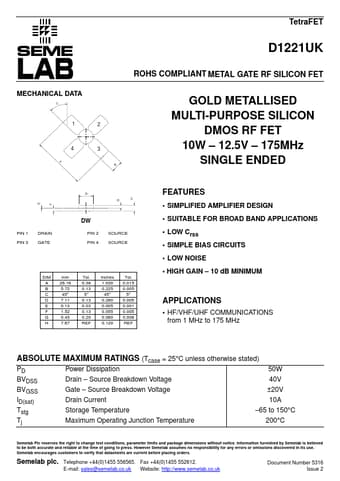

TetraFET D1221UK ROHS COMPLIANT METAL GATE RF SILICON FET MECHANICAL DATA C 1 2 4 A 3 B GOLD METALLISED MULTI-PURPOSE SILICON DMOS RF FET 10W – 12.5V – 175MHz SINGLE ENDED E F G H PIN 1 PIN 3 DRAIN GATE D DW PIN 2 PIN 4 SOURCE SOURCE DIM mm A 26.16 B 5.72 C 45° D 7.11 E 0.13 F 1.52 G 0.43 H 7.67 Tol. 0.38 0.13 5° 0.13 0.03 0.13 0.20 REF Inches 1.030 0.225 45° 0.280 0.005 0.055 0.060 0.120 Tol. 0.015 0.005 5° 0.005 0.001 0.005 0.
