C5106 Datasheet (Toshiba)

C5106, 2SC5106

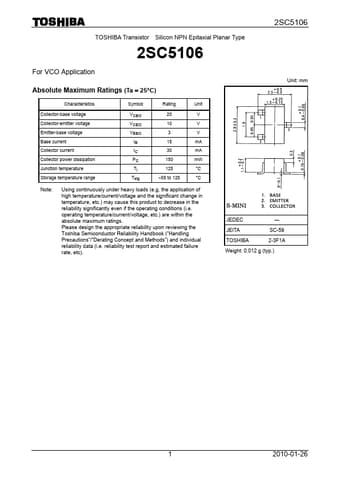

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC5106 2SC5106 For VCO Application Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Base current Collector current Collector power dissipation Junction temperature Storage temperature range VCBO VCEO VEBO IB IC PC Tj Tstg 20 10 3 15 30 150 125 55 to 125 V V V mA mA mW °C °C Note: Using continuously under heavy loads (e.g.

the app
