C3325 2SC3325

C3325 Description

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) 2SC3325 Audio Frequency Low Power Amplifier Applications Driver Stage Amplifier Applicatio.

C3325 Applications

* Driver Stage Amplifier Applications Switching Applications 2SC3325 Unit: mm
* Excellent hFE linearity : hFE (2) = 25 (min) (VCE = 6 V, IC = 400 mA)
* High voltage: VCEO = 50 V (min)
* Complementary to 2SA1313
* Small package Absolute Maximum Ratings (Ta = 25°C) Ch

📥 Download Datasheet

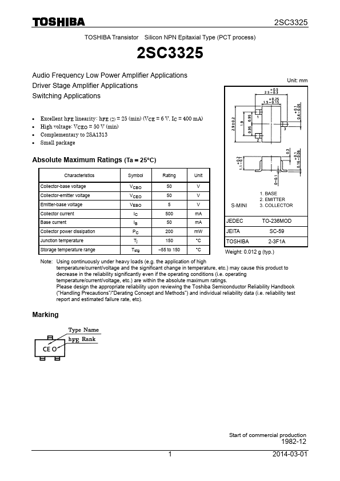

Preview of C3325 PDF
datasheet Preview Page 2 datasheet Preview Page 3
