C3225 2SC3225

Toshiba

C3225 Description

2SC3225 TOSHIBA Transistor Silicon NPN Epitaxial Type 2SC3225 Switching Applications Solenoid Drive Applications Industrial Applications Unit: mm .

C3225 Applications

* Solenoid Drive Applications Industrial Applications Unit: mm
* High DC current gain: hFE = 500 (min) (IC = 400 mA)
* Low collector-emitter saturation voltage: VCE (sat) = 0.5 V (max) (IC = 300 mA) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitte

📥 Download Datasheet

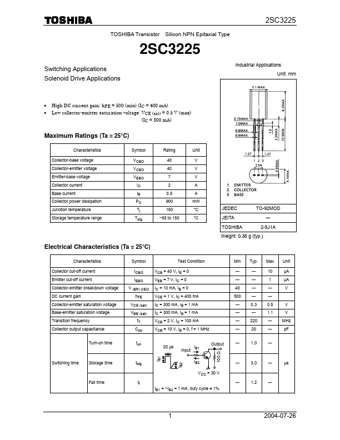

C3225 Datasheet Preview — Preview of C3225 PDF

Datasheet Details

Part number: C3225
Manufacturer: Toshiba ↗
File Size: 138.92 KB
Datasheet: C3225-Toshiba.pdf
Description: 2SC3225
