C322512HPB-R47, C322512 SMD Power Inductor

Sumida

Description

www.DataSheet.co.kr SMD Power Inductor C322512/DS .
Multilayer power inductor. Magnetically shielded. L W H: 3. Product weight: 50mg (Ref.

📥 Download Datasheet

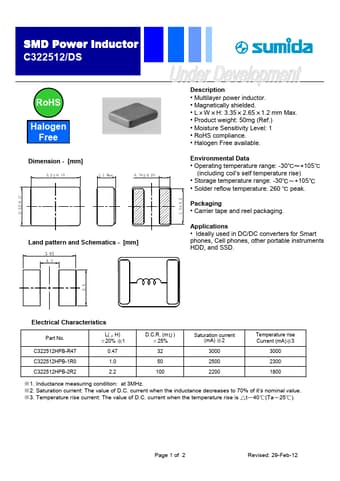

C322512HPB-R47 Datasheet Preview — This datasheet PDF includes multiple part numbers: C322512HPB-R47, C322512. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: C322512HPB-R47, C322512
Manufacturer: Sumida
File Size: 268.49 KB
Datasheet: C322512_Sumida.pdf
Description: SMD Power Inductor
Note: This datasheet PDF includes multiple part numbers: C322512HPB-R47, C322512.
Please refer to the document for exact specifications by model.

Applications

* Ideally used in DC/DC converters for Smart phones, Cell phones, other portable instruments, HDD, and SSD. Land pattern and Schematics - [mm] 3.65 1.3 5 . 2 Electrical Characteristics Part No. C322512HPB-R47 C322512HPB-1R0 C322512HPB-2R2 L(μH) ±20% ※1 0.47 1.0 2.2 D. C. R. (m 25% ± Ω) S
