B1016A 2SB1016A

B1016A Description

TOSHIBA Transistor Silicon PNP Epitaxial Type 2SB1016A Power Amplifier Applications 2SB1016A Unit: mm * High breakdown voltage: VCEO = <.

B1016A Applications

* 2SB1016A Unit: mm
* High breakdown voltage: VCEO =
* 100 V
* Low collector-emitter saturation voltage: VCE (sat) =
* 2.0 V (max)
* Complementary to 2SD1407A Absolute Maximum Ratings (Tc = 25°C) Characteristics Symbol Rating Unit Collector-base voltage V

📥 Download Datasheet

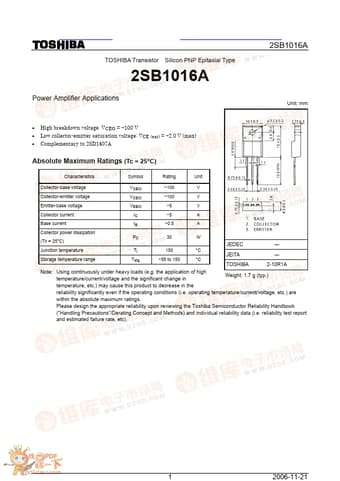

Preview of B1016A PDF
datasheet Preview Page 2 datasheet Preview Page 3
