2SD524 - NPN Transistor

Toshiba

The 2SD524 by Toshiba is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

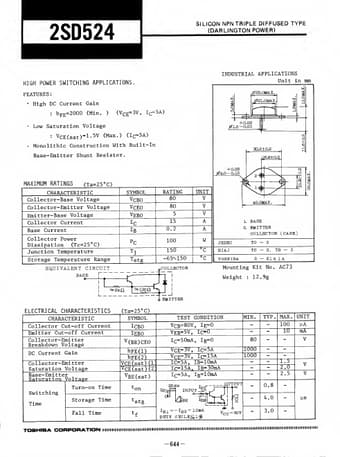

2SD524 NPN Transistor by Toshiba - Datasheet Preview — Official preview page of the 2SD524 NPN Transistor datasheet (Toshiba).

Datasheet Details

Part number	2SD524
Manufacturer	Toshiba
File Size	114.15 KB
Description	NPN Transistor
Datasheet	2SD524-Toshiba.pdf
Additional preview pages of the 2SD524 datasheet.

2SD524 Product details

Features

High DC Current Gain : h FE=2000 (Min. ) (V CE=3V, I C=5A).
Low Saturation Voltage : VCE (sat)=l- 5v dc=5A).
Monolithic Construction With Built-in Base-Emitter Shunt Resistor.
