2SD523 - NPN Transistor

Toshiba

The 2SD523 by Toshiba is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

2SD523 NPN Transistor by Toshiba - Datasheet Preview — Official preview page of the 2SD523 NPN Transistor datasheet (Toshiba).

Datasheet Details

Part number	2SD523
Manufacturer	Toshiba
File Size	104.18 KB
Description	NPN Transistor
Datasheet	2SD523-Toshiba.pdf

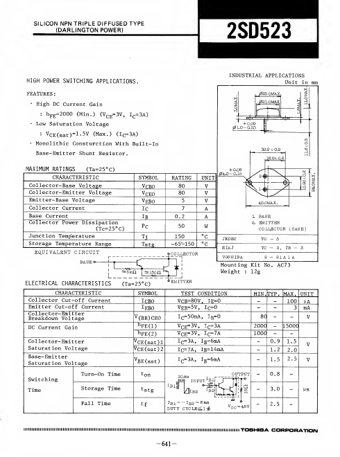

Additional preview pages of the 2SD523 datasheet.

2SD523 Product details

Features

High DC Current Gain : h FE=2000 (Min. ) (V CE =3V, I C =3A).
Low Saturation Voltage : vCE(sat)=l-5V (Max. ) (I C=3A).
Monolithic Consturction With Built-in Base-Emitter Shunt Resistor.
