TK20A60W5 - Silicon N-Channel MOSFET

Name: TK20A60W5
SKU: TK20A60W5-839551

Toshiba Semiconductor

The TK20A60W5 by Toshiba Semiconductor is a Silicon N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	TK20A60W5
Manufacturer	Toshiba Semiconductor
File Size	234.56 KB
Description	Silicon N-Channel MOSFET
Datasheet	TK20A60W5-ToshibaSemiconductor.pdf

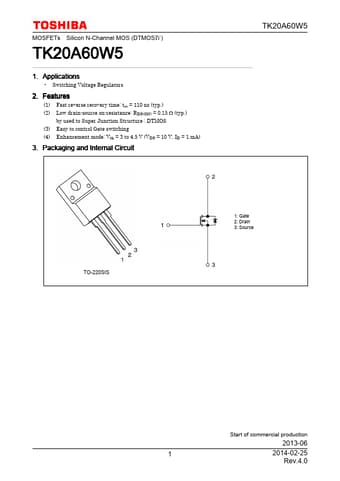

Additional preview pages of the TK20A60W5 datasheet.

(1) (2) (3) (4) Fast reverse recovery time: trr = 110 ns (typ. ) Low drain-source on-resistance: RDS(ON) = 0.15 Ω (typ. ) by used to Super Junction Structure : DTMOS Easy to control Gate switching Enhancement mode: Vth = 3 to 4.5 V (VDS = 10 V, ID = 1 mA) 3. Packaging and Internal Circuit 1: Gate 2: Drain 3: Source TO-220SIS Start of commercial production 1 2013-06 2014-02-25 Rev.4.0 TK20A60W5 4. Absolute Maximum Ratings (Note) (Ta = 25 unless otherwise specified) Characteristics Drain-sou.
