TK2019 - STEREO 20W (4OHM) CLASS-T DIGITAL AUDIO AMPLIFIER

Description

The TK2019 (TC2001/TPS1035 chipset) is a stereo single ended 20W continuous average power per channel, Class-T Digital Audio Power Amplifier using Tripath’s proprietary Digital Power ProcessingTM technology.

Features

5.1-Channel powered DVD player Mini/Micro Component Systems Home Theater Stereo.

Tripath

📥 Download Datasheet

Datasheet Details

Part number	TK2019
Manufacturer	Tripath
File Size	440.23 KB
Description	STEREO 20W (4OHM) CLASS-T DIGITAL AUDIO AMPLIFIER
Datasheet	TK2019 Datasheet

📁 Similar Datasheet

TK200F04N1L - Silicon N-Channel MOSFET (Toshiba)
TK2051 - STEREO 50W (8ohm) CLASS-T DIGITAL AUDIO AMPLIFIER DRIVER (Tripath Technology)
TK2070 - STEREO 70W (4Ohm) CLASS-T DIGITAL AUDIO AMPLIFIER DRIVER (Tripath Technology)
TK20A - Current Transducer (Topstek)
TK20A20D - Silicon N-Channel MOSFET (Toshiba)
TK20A20D - N-Channel MOSFET (INCHANGE)
TK20A25D - Silicon N-Channel MOSFET (Toshiba)
TK20A25D - N-Channel MOSFET (INCHANGE)
TK20A60U - Silicon N-Channel MOSFET (Toshiba)
TK20A60U - N-Channel MOSFET (INCHANGE)

Other Datasheets by Tripath

TK2050 - STEREO 50W (8OHM) CLASS-T DIGITAL AUDIO AMPLIFIER

Full PDF Text Transcription

Click to expand full text

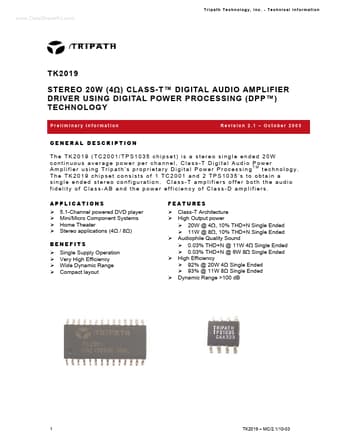

Tr i path Technol ogy, I nc. - Techni cal I nfor m ati on www.DataSheet4U.com TK2019 STEREO 20W (4 Ω ) CLASS-T™ DIGITAL AUDIO AMPLIFIER DRIVER USING DIGITAL POWER PROCESSING (DPP™) TECHNOLOGY Preliminary Information Revision 2.1 – October 2003 GENERAL DESCRIPTION The TK2019 (TC2001/TPS1035 chipset) is a stereo single ended 20W continuous average power per channel, Class-T Digital Audio Power Amplifier using Tripath’s proprietary Digital Power ProcessingTM technology. The TK2019 chipset consists of 1 TC2001 and 2 TPS1035’s to obtain a single ended stereo configuration. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers. APPLICATIONS FEATURES 5.
