TA7713P - 3 PHASE BI-DIRECTIONAL TYPE MOTOR CONTROL IC

Toshiba Semiconductor

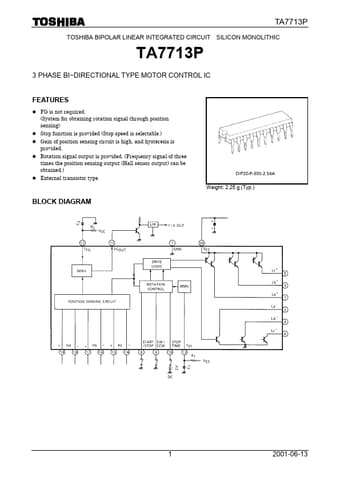

TA7713P Datasheet Preview — Preview of TA7713P PDF

Datasheet Details

Part number	TA7713P
Manufacturer	Toshiba ↗ Semiconductor
File Size	279.91 KB
Description	3 PHASE BI-DIRECTIONAL TYPE MOTOR CONTROL IC
Datasheet	TA7713P_ToshibaSemiconductor.pdf

TA7713P Product details

Description

a phase upper drive output terminal a phase lower drive output terminal b phase upper drive output terminal b phase lower drive output terminal c phase upper drive output terminal c phase lower drive output terminal GND terminal Start / stop switch terminal Normal rotation / reverse rotation switch terminal MMV Time constant switch terminal for stopping FG signal output terminal (determines MMV pulse width) C, R connection terminal (determines MMV

Features

l FG is not required. (System for obtaining rotation signal through position sensing) l Stop function is provided (Stop speed is selectable. ) l Gain of position sensing circuit is high, and hysteresis is provided. l Rotation signal output is provided. (Frequency signal of three times the position sensing output (Hall sensor output) can be obtained. ) l External transistor type. BLOCK.
