TA7712PG - Full-Wave Brushless DC Motor Controller IC

Toshiba Semiconductor

TA7712PG Datasheet Preview — Preview of TA7712PG PDF

Datasheet Details

Part number	TA7712PG
Manufacturer	Toshiba ↗ Semiconductor
File Size	599.25 KB
Description	Full-Wave Brushless DC Motor Controller IC
Datasheet	TA7712PG-ToshibaSemiconductor.pdf

TA7712PG Product details

Description

PIN No. Lb+ Lb Lc+ Lc GND START/STOP CW/CCW BRAKE FGOUT TFG N.C.Hc Hc+ Hb Hb+ Ha Ha+ VCC DESCRIPTION High-side drive output for phase a Low-side drive output for phase a High-side drive output for phase b Low-side drive output for phase b High-side drive output for phase c Low-side drive output for

Features

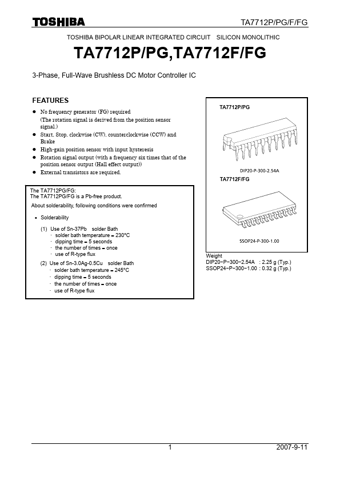

z No frequency generator (FG) required (The rotation signal is derived from the position sensor signal. ) z Start, Stop, clockwise (CW), counterclockwise (CCW) and Brake z High-gain position sensor with input hysteresis z Rotation signal output (with a frequency six times that of the position sensor output (Hall effect output)) z External transistors are required. The TA7712PG/FG: The TA7712PG/FG is a Pb-free product. About solderability, following conditions were confirmed.
Solderabilit.
