TA7628HP AMPLIFIER SYSTEM FOR CASSETTE TAPE RECORDER

Toshiba Semiconductor

Description

TA7628P/HP TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA7628P,TA7628HP Amplifier System for Cassette Tape Recorder TA7628P and TA76.

📥 Download Datasheet

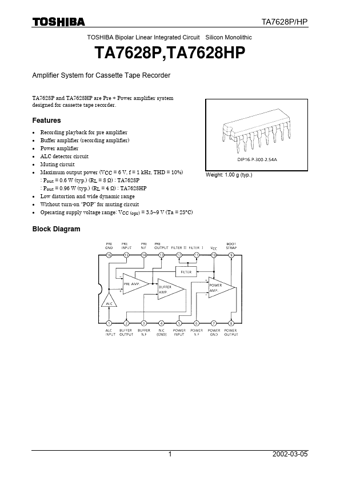

TA7628HP Datasheet Preview — Preview of TA7628HP PDF

Datasheet Specifications

Part number: TA7628HP
Manufacturer: Toshiba ↗ Semiconductor
File Size: 291.36 KB
Datasheet: TA7628HP_ToshibaSemiconductor.pdf
Description: AMPLIFIER SYSTEM FOR CASSETTE TAPE RECORDER

Features

* Recording playback for pre amplifier
* Buffer amplifier (recording amplifier)
* Power amplifier
* ALC detector circuit
* Muting circuit
* Maximum output power (VCC = 6 V, f = 1 kHz, THD = 10%) : Pout = 0.6 W (typ. ) (RL = 8 Ω) : TA7628P : Pout = 0.96 W (typ. ) (RL = 4 Ω) : TA

Applications

* (4) The electrolytic capacitance 100 µF~220 µF between VCC and GND must be arranged near to this IC. 3. To prevent the oscillation (1) The output terminal of preamplifier must be terminated to GND by the capacitance more than 5600 pF. (The recommended value: C = 0.01 µF) (2) The output terminal of
