MT3S38T - TRANSISTOR SILICON NPN EPITAXIAL PLANER TYPE

Product Overview

Toshiba Semiconductor

📥 Download Datasheet

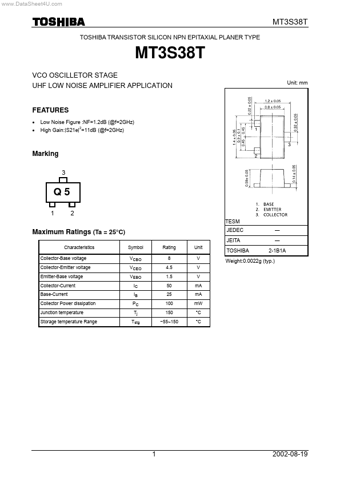

MT3S38T TRANSISTOR SILICON NPN EPITAXIAL PLANER TYPE by Toshiba Semiconductor - Datasheet Preview — Datasheet preview – MT3S38T

Datasheet Details

Part number	MT3S38T
Manufacturer	Toshiba Semiconductor
File Size	149.45 KB
Description	TRANSISTOR SILICON NPN EPITAXIAL PLANER TYPE
Datasheet	MT3S38T Datasheet
Additional preview pages of the MT3S38T datasheet.

Product details

Features

Low Noise Figure :NF=1.2dB (@f=2GHz) High Gain:|S21e| =11dB (@f=2GHz) 2 Marking 3 Q5 1 2 TESM JEDEC JEITA Characteristics Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector-Current Base-Current Collector Power dissipation Junction temperature Storage temperature Range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 8 4.5 1.5 50 25 100 150.
55~150 Unit V V V mA mA mW °C °C Maximum Ratings (Ta = 25°C) ― ― 2-1B1A.
