MT3S36T - TRANSISTOR SILICON NPN EPITAXIAL PLANER TYPE

Product Overview

Toshiba Semiconductor

📥 Download Datasheet

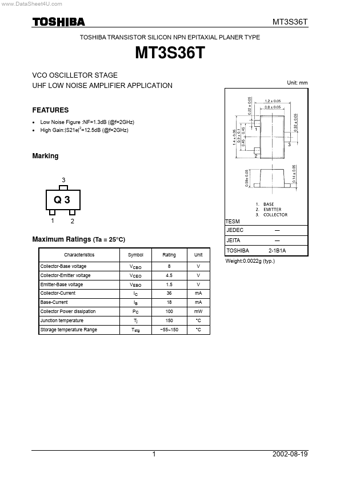

MT3S36T TRANSISTOR SILICON NPN EPITAXIAL PLANER TYPE by Toshiba Semiconductor - Datasheet Preview — Datasheet preview – MT3S36T

Datasheet Details

Part number	MT3S36T
Manufacturer	Toshiba Semiconductor
File Size	148.17 KB
Description	TRANSISTOR SILICON NPN EPITAXIAL PLANER TYPE
Datasheet	MT3S36T Datasheet
Additional preview pages of the MT3S36T datasheet.

Product details

Features

Low Noise Figure :NF=1.3dB (@f=2GHz) High Gain:|S21e| =12.5dB (@f=2GHz) 2 Marking 3 Q3 1 2 TESM JEDEC ― ― 2-1B1A Maximum Ratings (Ta = 25°C) Characteristics Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector-Current Base-Current Collector Power dissipation Junction temperature Storage temperature Range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 8 4.5 1.5 36 18 100 150.
55~150 Unit V V V mA mA mW °C °C JEITA.
