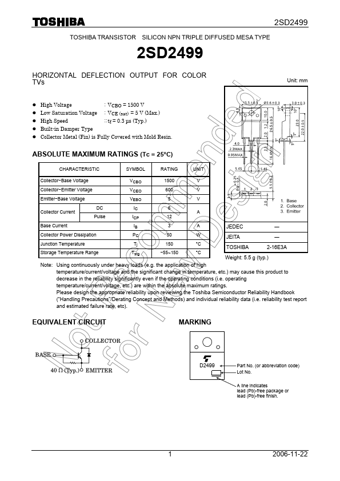

2SD2499 TOSHIBA TRANSISTOR SILICON NPN TRIPLE DIFFUSED MESA TYPE 2SD2499 HORIZONTAL DEFLECTION OUTPUT FOR COLOR TVs Unit: mm z High Voltage : VCBO = 1500 V z Low Saturation Voltage : VCE (sat) = 5 V (Max.) z High Speed :: tf = 0.3 μs (Typ.) z Built-in Damper Type z Collector Metal (Fin) is Fully Covered with Mold Resin. ABSOLUTE MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC SYMBOL RATING UNIT Collector Base Voltage VCBO 1500 V Collector Emitter Voltage VCEO 600 .
