D2498 CXD2498

Sony Corporation

Description

CXD2498R Timing Generator for Frame Readout CCD Image Sensor .
The CXD2498R is a timing generator IC which generates the timing pulses for performing frame readout using the ICX282 CCD image sensor.

📥 Download Datasheet

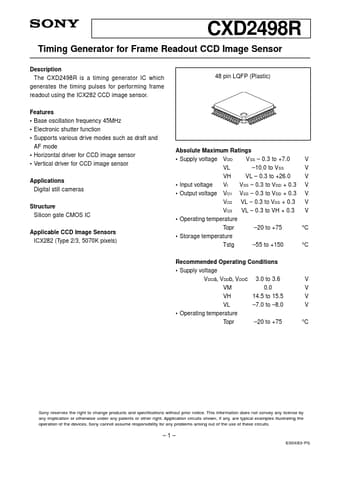

D2498 Datasheet Preview — Preview of D2498 PDF

Datasheet Specifications

Part number: D2498
Manufacturer: Sony Corporation
File Size: 554.10 KB
Datasheet: D2498_SonyCorporation.pdf
Description: CXD2498

Features

* Base oscillation frequency 45MHz
* Electronic shutter function
* Supports various drive modes such as draft and AF mode
* Horizontal driver for CCD image sensor

Applications

* Digital still cameras Structure Silicon gate CMOS IC Applicable CCD Image Sensors ICX282 (Type 2/3, 5070K pixels) 48 pin LQFP (Plastic) Absolute Maximum Ratings
* Supply voltage VDD VSS
* 0.3 to +7.0 V VL
* 10.0 to VSS V VH VL
* 0.3 to +26.0 V
* Input voltage
