C2236 2SC2236

C2236 Description

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) 2SC2236 Audio Power Amplifier Applications 2SC2236 Unit: mm * Complementary to 2.

C2236 Applications

* 2SC2236 Unit: mm
* Complementary to 2SA966 and 3-watt output applications. Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 30 V Collector-emitter voltage VCEO 30 V Emitter-base voltage VEBO 5 V Collector current IC 1.5

📥 Download Datasheet

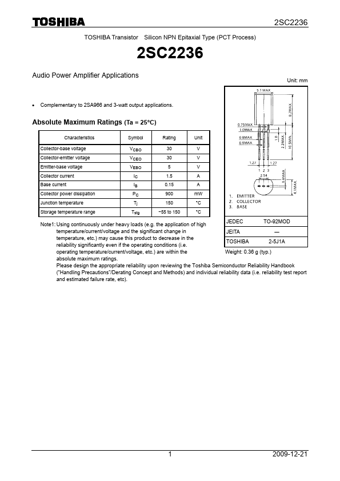

Preview of C2236 PDF
datasheet Preview Page 2 datasheet Preview Page 3
