C2209 Silicon NPN Transistor

C2209 Description

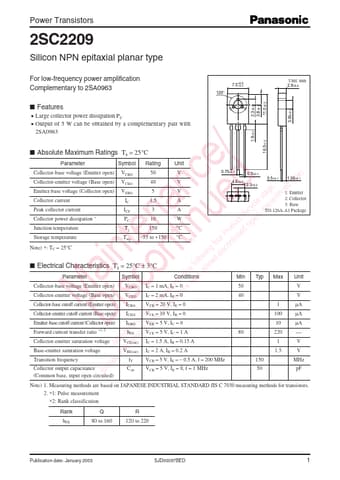

Power Transistors 2SC2209 Silicon NPN epitaxial planar type For low-frequency power amplification Complementary to 2SA0963 120° 7.5+ *00..15.

C2209 Features

* 3.05±0.1
* Large collector power dissipation PC
* Output of 5 W can be obtained by a complementary pair with 2SA0963
* Absolute Maximum Ratings Ta = 25°C 1.9±0.1 16.0±1.0 / Parameter Symbol Rating Unit e ) Collector-base voltage (Emitter open) VCBO 50 V c type Collect
