2SC3233 - NPN TRIPLE DIFFUSED TRANSISTOR

📥 Download Datasheet

Datasheet Details

Part number 2SC3233
Manufacturer Toshiba
File Size 196.44 KB
Description NPN TRIPLE DIFFUSED TRANSISTOR
Datasheet download datasheet 2SC3233 Datasheet

📁 Similar Datasheet

  • 2SC3233 - NPN Silicon Triple Diffused Transistor (Kexin)
  • 2SC3230 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3230 - Silicon NPN Power Transistors (Inchange Semiconductor)
  • 2SC3231 - NPN Transistor (INCHANGE)
  • 2SC3231 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3235 - Silicon NPN Transistor (Toshiba)
  • 2SC3235 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3235 - NPN Transistor (INCHANGE)
  • 2SC3236 - Silicon NPN Transistor (Toshiba)
  • 2SC3239 - Silicon NPN Transistor (Toshiba)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

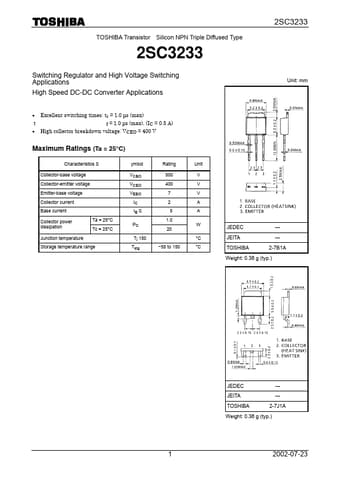

2SC3233 TOSHIBA Transistor Silicon NPN Triple Diffused Type 2SC3233 Switching Regulator and High Voltage Switching Applications High Speed DC-DC Converter Applications · t · Excellent switching times: tr = 1.0 µs (max) f = 1.0 µs (max), (IC = 0.8 A) Unit: mm High collector breakdown voltage: VCEO = 400 V Maximum Ratings (Ta = 25°C) Characteristics S Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Ta = 25°C Tc = 25°C ymbol VCBO VCEO VEBO IC IB 0. PC Tj 150 Tstg −55 to 150 Rating 500 400 7 2 5 1.0 20 Unit V V V A A W °C °C JEDEC JEITA TOSHIBA ― ― 2-7B1A Weight: 0.36 g (typ.) JEDEC JEITA TOSHIBA ― ― 2-7J1A Weight: 0.36 g (typ.) 1 2002-07-23 http://www.
