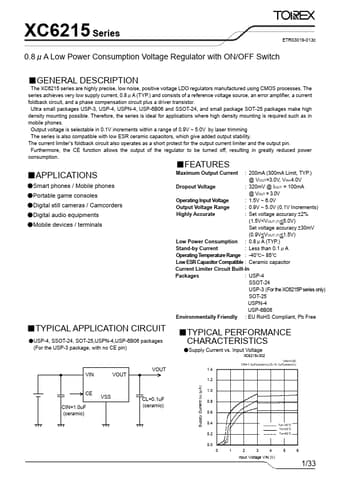

XC6215, Low Power Consumption Voltage Regulator

The XC6215 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes.

The series achieves very low supply current, 0.8μA (TYP.) and consists of a reference voltage source, an error amplifier, a current foldback circuit, and a phase compensation circuit

XC6215 Features

* APPLICATIONS

* Smart phones / Mobile phones

* Portable game consoles

* Digital still cameras / Camcorders Maximum Output Current Dropout Voltage Operating Input Voltage Output Voltage Range : 200mA (300mA Limit, TYP.) @ VOUT=3.0V, VIN=4.0V : 320mV @ IOUT = 100mA @ VOUT = 3.0V : 1.5V
