XC6212 - (XC6209 / XC6212) High Speed LDO Regulator

Product Overview

Torex Semiconductor

Datasheet Details

Part number	XC6212
Manufacturer	Torex Semiconductor
File Size	1.82 MB
Description	(XC6209 / XC6212) High Speed LDO Regulator
Datasheet	XC6212 Datasheet

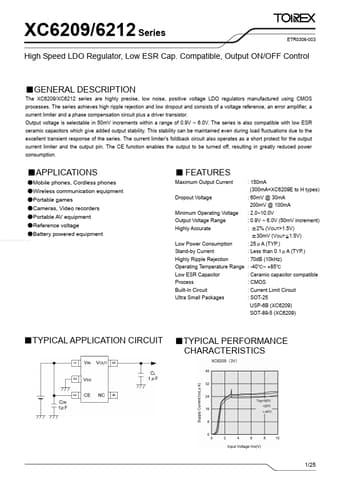

Additional preview pages of the XC6212 datasheet.

Product details

Description

ETR0306-003 High Speed LDO Regulator, Low ESR Cap.Compatible, Output ON/OFF Control The XC6209/XC6212 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes.The series achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor.Output voltage is selectable in 50mV increments within a range of 0.9V ~ 6.0V.The series is also

Features

S Maximum Output Current : 150mA (300mA=XC6209E to H types) Dropout Voltage : 60mV @ 30mA 200mV @ 100mA Minimum Operating Voltage : 2.0~10.0V Output Voltage Range : 0.9V ~ 6.0V (50mV increment) Highly Accurate : ±2% (VOUT>1.5V) ±30mV (VOUT≦1.5V) Low Power Consumption : 25μA (TYP. ) Stand-by Current : Less than 0.1μA (TYP. ) Highly Ripple Rejection : 70dB (10kHz) Operating Temperature Range : -40℃~ +85℃ Low ESR Capacitor : Ceramic capacitor compatible Process : CMOS Built-In Circuit : Current Limit.
