DF794S20B - Dielectric Filters

Product Overview

Token

Part number	DF794S20B
Manufacturer	Token
File Size	952.15 KB
Description	Dielectric Filters
Datasheet	DF794S20B Datasheet
Note	This datasheet PDF includes multiple part numbers: DF794S20B, DF740S30A. Please refer to the document for exact specifications by model.

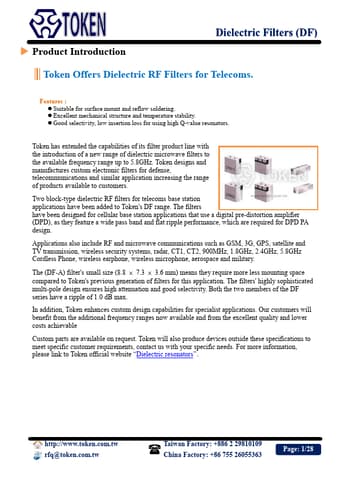

Additional preview pages of the DF794S20B datasheet.

:.
Suitable for surface mount and reflow soldering.
Excellent mechanical structure and temperature stability.
Good selectivity, low insertion loss for using high Q-value resonators. Token has extended the capabilities of its filter product line with the introduction of a new range of dielectric microwave filters to the available frequency range up to 5.8GHz. Token designs and manufactures custom electronic filters for defense, telecommunications and similar.
