DF7-1618SC - 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)

Product Overview

Hirose

Part number	DF7-1618SC
Manufacturer	Hirose
File Size	666.51 KB
Description	3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)
Datasheet	DF7-1618SC Datasheet
Note	This datasheet PDF includes multiple part numbers: DF7-1618SC, DF7. Please refer to the document for exact specifications by model.

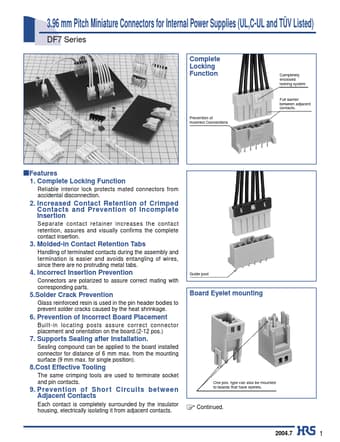

Additional preview pages of the DF7-1618SC datasheet.

1. Complete Locking Function Reliable interior lock protects mated connectors from accidental disconnection. 2. Increased Contact Retention of Crimped Contacts and Prevention of Incomplete Insertion Separate contact retainer increases the contact retention, assures and visually confirms the complete contact insertion. 3. Molded-in Contact Retention Tabs Handling of terminated contacts during the assembly and termination is easier and avoids entangling of wires, since there are no protruding me.
