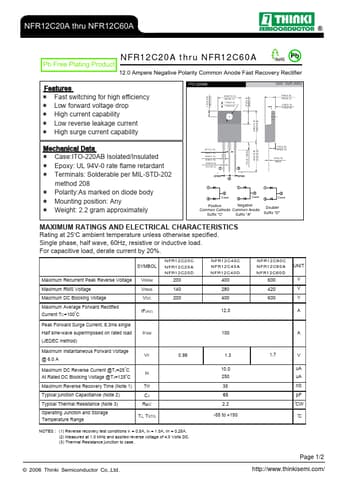

NFR12C20C, NFR12C20A - 12.0 Ampere Negative Polarity Common Anode Fast Recovery Rectifier

Thinki Semiconductor

Datasheet Details

Part number	NFR12C20C, NFR12C20A
Manufacturer	Thinki Semiconductor
File Size	597.97 KB
Description	12.0 Ampere Negative Polarity Common Anode Fast Recovery Rectifier
Datasheet	NFR12C20A-ThinkiSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: NFR12C20C, NFR12C20A. Please refer to the document for exact specifications by model.

¬ Fast switching for high efficiency ¬ Low forward voltage drop ¬ High current capability ¬ Low reverse leakage current ¬ High surge current capability .112(2.85) .100(2.55) ITO-220AB .406(10.3) .381(9.7) .134(3.4) .118(3.0) .272(6.9) .248(6.3) .606(15.4) .583(14.8) Unit : inch (mm) .189(4.8) .165(4.2) .130(3.3) .114(2.9) Mechanical Data ¬ Case:ITO-220AB Isolated/Insulated ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-202 method 208 ¬ Polarity:As marked on dio.
