NFR12C20A - 12.0 Ampere Negative Polarity Common Anode Fast Recovery Rectifier

Thinki Semiconductor

Datasheet Details

Part number	NFR12C20A
Manufacturer	Thinki Semiconductor
File Size	597.97 KB
Description	12.0 Ampere Negative Polarity Common Anode Fast Recovery Rectifier

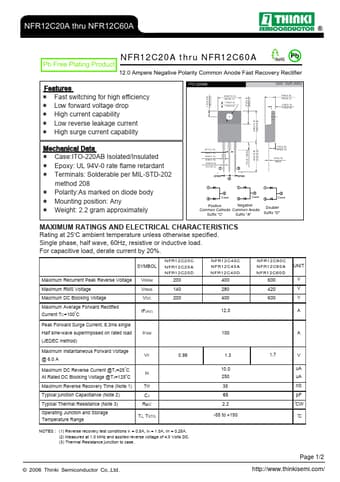

Datasheet	NFR12C20A-ThinkiSemiconductor.pdf

¬ Fast switching for high efficiency ¬ Low forward voltage drop ¬ High current capability ¬ Low reverse leakage current ¬ High surge current capability .112(2.85) .100(2.55) ITO-220AB .406(10.3) .381(9.7) .134(3.4) .118(3.0) .272(6.9) .248(6.3) .606(15.4) .583(14.8) Unit : inch (mm) .189(4.8) .165(4.2) .130(3.3) .114(2.9) Mechanical Data ¬ Case:ITO-220AB Isolated/Insulated ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-202 method 208 ¬ Polarity:As marked on dio.
