MUR1060E, MUR1005CT - 10.0 Ampere Heatsink Glass Passivated Ultra Fast Recovery Rectifier

Thinki Semiconductor

Datasheet Details

Part number	MUR1060E, MUR1005CT
Manufacturer	Thinki Semiconductor
File Size	636.63 KB
Description	10.0 Ampere Heatsink Glass Passivated Ultra Fast Recovery Rectifier

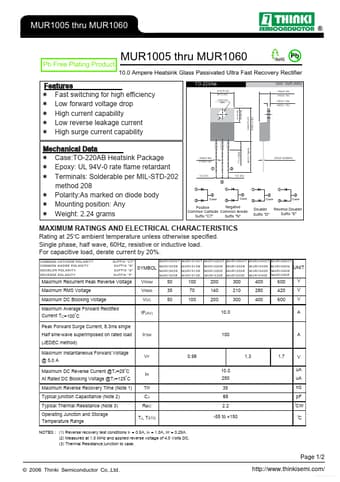

Datasheet	MUR1005CT_ThinkiSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MUR1060E, MUR1005CT. Please refer to the document for exact specifications by model.

¬ Fast switching for high efficiency ¬ Low forward voltage drop ¬ High current capability ¬ Low reverse leakage current ¬ High surge current capability Mechanical Data ¬ Case:TO-220AB Heatsink Package ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-202 method 208 ¬ Polarity:As marked on diode body ¬ Mounting position: Any ¬ Weight: 2.24 grams Unit : inch (mm) .196(5.00) .163(4.16) .054(1.39) .045(1.15) .269(6.85) .226(5.75) .624(15.87) .50(12.7)MIN .038(0.96) .019(0.
