MUR1060DC - SUPER FAST RECTIFIERS

Download the MUR1060DC datasheet PDF. This datasheet also covers the MUR1020DC variant, as both devices belong to the same super fast rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • z Low cost. z Low leakage. z Low forward voltage drop. Pb Lead-free z High currnt capability. z Easily cleaned with Alcohol,Isopropanol and similar solvents. z The plastic material carries U/L recognition 94V-0. TO-252.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MUR1020DC-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MUR1060D 10.0 Ampere Heatsink Glass Passivated Ultra Fast Recovery Rectifier Thinki Semiconductor
MUR1060D Ultra-Fast Recovery Diode Yangzhou Yangjie
MUR1060DL Ultra-Fast Recovery Diode Yangzhou Yangjie
MUR1060DS Ultra-Fast Recovery Diode Yangzhou Yangjie
MUR1060 Glass passivated super fast rectifier First Silicon

Other Datasheets by Galaxy Microelectronics

Part Number Description
MUR1060CT Super Fast Rectifier
MUR1005CT Super Fast Rectifier
MUR1010CT Super Fast Rectifier
MUR1015CT Super Fast Rectifier
MUR1020CT Super Fast Rectifier

Full PDF Text Transcription

Click to expand full text

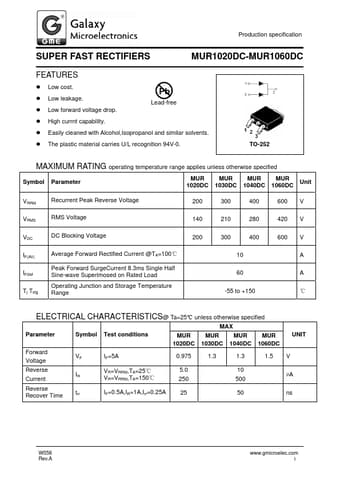

Production specification SUPER FAST RECTIFIERS MUR1020DC-MUR1060DC FEATURES z Low cost. z Low leakage. z Low forward voltage drop. Pb Lead-free z High currnt capability. z Easily cleaned with Alcohol,Isopropanol and similar solvents. z The plastic material carries U/L recognition 94V-0. TO-252 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter MUR 1020DC MUR 1030DC MUR 1040DC MUR 1060DC Unit VRRM Recurrent Peak Reverse Voltage 200 300 400 600 V VRMS RMS Voltage 140 210 280 420 V VDC IF(AV) IFSM Tj Tstg DC Blocking Voltage Average Forward Rectified Current @TA=100℃ Peak Forward SurgeCurrent 8.
