2SA1694 - Silicon PNP Transistor

The 2SA1694 by Thinki Semiconductor is a Silicon PNP Transistor. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SA1694 Silicon PNP Transistor datasheet (Thinki Semiconductor).

Datasheet Details

Part number 2SA1694
Manufacturer Thinki Semiconductor
File Size 499.17 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SA1694_ThinkiSemiconductor.pdf
Additional preview pages of the 2SA1694 datasheet.

2SA1694 Product details

Description

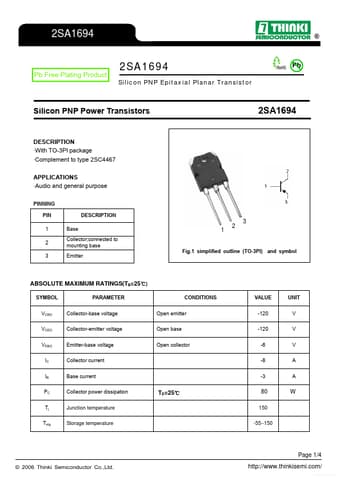

With TO-3PI package Complement to type 2SC4467 APPLICATIONS Audio and general purpose PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PI) and symbol DESCRIPTION 1 2 3 ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature CONDITIONS O
