TD1468 - 480kHz Non-synchronous Buck Converter

Techcode

The TD1468 by Techcode is a 480kHz Non-synchronous Buck Converter. Below is the official datasheet preview.

📥 Download Datasheet

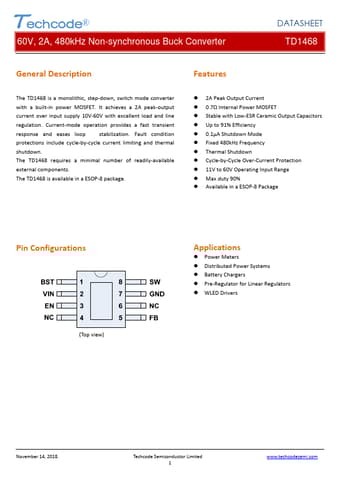

TD1468 480kHz Non-synchronous Buck Converter by Techcode - Datasheet Preview — Official preview page of the TD1468 480kHz Non-synchronous Buck Converter datasheet (Techcode).

Datasheet Details

Part number	TD1468
Manufacturer	Techcode
File Size	548.30 KB
Description	480kHz Non-synchronous Buck Converter
Datasheet	TD1468-Techcode.pdf
Additional preview pages of the TD1468 datasheet.

TD1468 Product details

Description

The TD1468 is a monolithic, step‐down, switch mode converter with a built‐in power MOSFET.

Features

2A Peak Output Current.
0.7Ω Internal Power MOSFET.
Stable with Low‐ESR Ceramic Output Capacitors.
Up to 91% Efficiency.
0.1μA Shutdown Mode.
Fixed 480kHz Frequency.
Thermal Shutdown.
Cycle‐by‐Cycle Over‐Current Protection.
11V to 60V Operating Input Range.
Max duty 90%.
Available in a ESOP‐8 Package Pin Configurations (Top view).
