W02M - Single Phase 1.5 AMPS. Silicon Bridge Rectifiers

Taiwan Semiconductor

Datasheet Details

Part number	W02M
Manufacturer	Taiwan Semiconductor
File Size	153.30 KB
Description	Single Phase 1.5 AMPS. Silicon Bridge Rectifiers

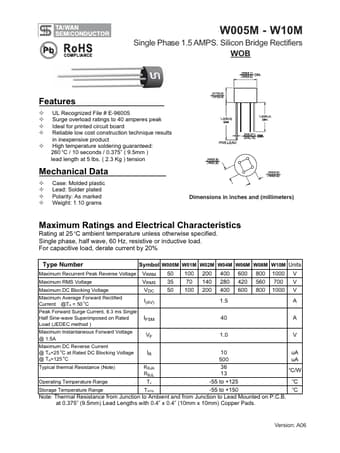

Datasheet	W02M-TaiwanSemiconductor.pdf

UL Recognized File # E-96005 Surge overload ratings to 40 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. ( 2.3 Kg ) tension Mechanical Data Case: Molded plastic Lead: Solder plated Polarity: As marked Weight: 1.10 grams Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25 oC ambien.
