W02GM - Glass Passivated Single-Phase Bridge Rectifiers

This page provides the datasheet information for the W02GM, a member of the W02M Glass Passivated Single-Phase Bridge Rectifiers family.

Datasheet Summary

Features

  • Surge overload ratings to 40 or 50 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 265oC / 10 seconds / 0.375” (9.5mm) lead length at 5 lbs. (2.3 kg) tension Mechanical Data Case: Molded plastic Lead: solder plated Polarity: As marked Weight: 1.07 grams (RB-15), 1.10 grams (WOB) Package outline dimensions in inches (millimeters) Maximum Ratings and Electrical Characteristics Rating at 2.

📥 Download Datasheet

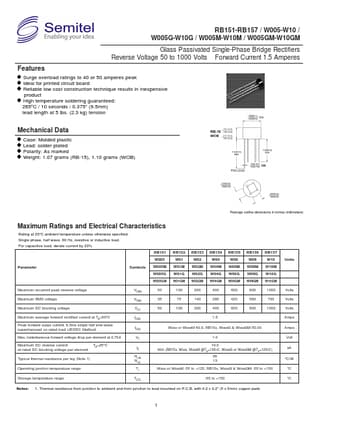

Datasheet preview – W02GM

Datasheet Details

Part number W02GM
Manufacturer Semitel
File Size 202.18 KB
Description Glass Passivated Single-Phase Bridge Rectifiers
Datasheet download datasheet W02GM Datasheet
Additional preview pages of the W02GM datasheet.

📁 Similar Datasheet

  • W02GM - Single Phase 1.5 AMPS. Glass Passivated Bridge Rectifiers (Taiwan Semiconductor)
  • W02G - Single Phase 1.5 AMPS. Glass Passivated Bridge Rectifiers (Taiwan Semiconductor)
  • W02G - 1.5A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)
  • W02G - GLASS PASSIVATED BRIDGE RECTIFIERS (LITE-ON)
  • W02G - 1.5A Glass Passivated Bridge Rectifier (TAITRON)
  • W02G - 1.5 Ampere Glass Passivated Bridge Rectifiers (Fairchild Semiconductor)
  • W02G - 1.5A GLASS PASSIVATED BRIDGE RECTIFIER (Diodes Incorporated)
  • W02G - Glass Passivated Single-Phase Bridge Rectifier (Vishay)
  • W02G - Single Phase Bridge Rectifier (MEI SEMI)
  • W02G-G - Glass Passivated Bridge Rectifiers (Comchip)
Other Datasheets by Semitel
  • W02 - Glass Passivated Single-Phase Bridge Rectifiers
  • W02M - Glass Passivated Single-Phase Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text
RB151-RB157 / W005-W10 / W005G-W10G / W005M-W10M / W005GM-W10GM Glass Passivated Single-Phase Bridge Rectifiers Reverse Voltage 50 to 1000 Volts Forward Current 1.5 Amperes Features Surge overload ratings to 40 or 50 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 265oC / 10 seconds / 0.375” (9.5mm) lead length at 5 lbs. (2.3 kg) tension Mechanical Data Case: Molded plastic Lead: solder plated Polarity: As marked Weight: 1.07 grams (RB-15), 1.10 grams (WOB) Package outline dimensions in inches (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
