TS40P06G, TS40P05G Glass Passivated Bridge Rectifiers

Taiwan Semiconductor

Description

TS40P05G thru TS40P07G Taiwan Semiconductor CREAT BY ART Glass Passivated Bridge Rectifiers .
only.

📥 Download Datasheet

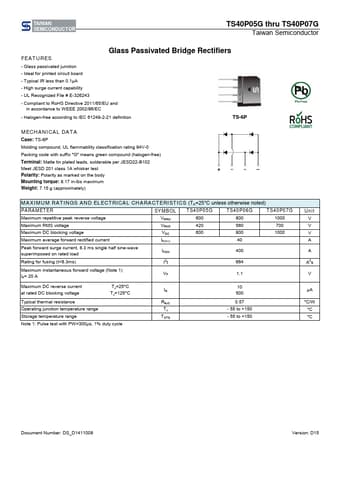

TS40P06G Datasheet Preview — This datasheet PDF includes multiple part numbers: TS40P06G, TS40P05G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TS40P06G, TS40P05G
Manufacturer: Taiwan Semiconductor
File Size: 238.65 KB
Datasheet: TS40P05G-TaiwanSemiconductor.pdf
Description: Glass Passivated Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: TS40P06G, TS40P05G.
Please refer to the document for exact specifications by model.

Features

* - Glass passivated junction - Ideal for printed circuit board - Typical IR less than 0.1μA - High surge current capability - UL Recognized File # E-326243 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition TS-6P MECH

Applications

* Customers using or seling these products for use in such applications do so at their own risk and agree to fully indemnify TSC for any damages resulting from such improper use or sale. Document Number: DS_D1411008 Version: D15
