TS420-600B, TS420 Sensitive gate 4A SCRs

TS420-600B Description

.
Thanks to highly sensitive triggering levels, the device is suitable for all applications where the available gate current is limited, such as motor c.

TS420-600B Features

* On-state RMS current: 4 A
* Repetitive peak off-state voltage (VDRM, VRRM) 600 V

TS420-600B Applications

* where the available gate current is limited, such as motor control for hand tools, kitchen aids, overvoltage crowbar protection for low power supplies among others. Available in through-hole and surface-mount packages, they provide an optimized performance in a limited space area. Table 1: Device

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TS420-600B, TS420. Please refer to the document for exact specifications by model.

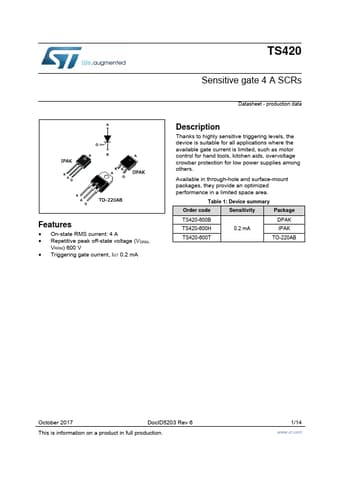

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TS420-600B, TS420
Manufacturer
STMicroelectronics ↗
File Size
1.05 MB
Datasheet
TS420_STMicroelectronics.pdf
Description
Sensitive gate 4A SCRs
Note
This datasheet PDF includes multiple part numbers: TS420-600B, TS420.
Please refer to the document for exact specifications by model.
