TS4264 150mA Ultra Low Drop Out Voltage Regulator

TS4264 Description

TS4264 5V/150mA Fixed-Voltage Ultra Low LDO SOT-223 Pin Definition: 1.Input 2.Ground (tab) 3.Output General .
TS4264 is a 5V low-drop fixed-voltage regulator in an SOT-223 package.

TS4264 Features

* temperature protection that disables the circuit at over-temperature. Features
* Fixed Output Voltage 5V
* Output Voltage Tolerance ±2%
* 150mA Current Capability
* Ultra Low Dropout Voltage
* Over Temperature Protection
* Very Low Current Consumption 400uA (max. )
* Shor

TS4264 Applications

* Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify TSC for any damages resulting from such improper use or sale. 6/6 Version: B07

📥 Download Datasheet

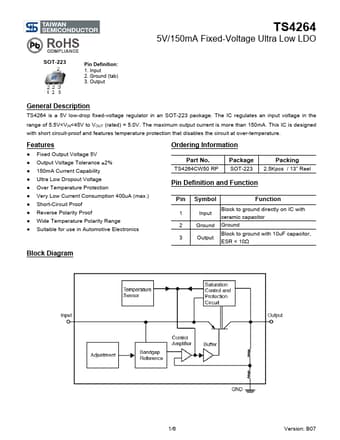

Preview of TS4264 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TS4264
Manufacturer
Taiwan Semiconductor Company
File Size
211.06 KB
Datasheet
TS4264_TaiwanSemiconductorCompany.pdf
Description
150mA Ultra Low Drop Out Voltage Regulator
